AKS Plasma Systems
AKS’s high-quality plasma cutting machine solutions combine maximum precision with vast customization opportunities and cost savings. Since 1912, we’ve developed industry-leading products and have provided reliable, effective solutions to thousands of customers. Our expertise enables us to provide a range of state-of-the-art plasma cutting machines that meet your precise requirements.

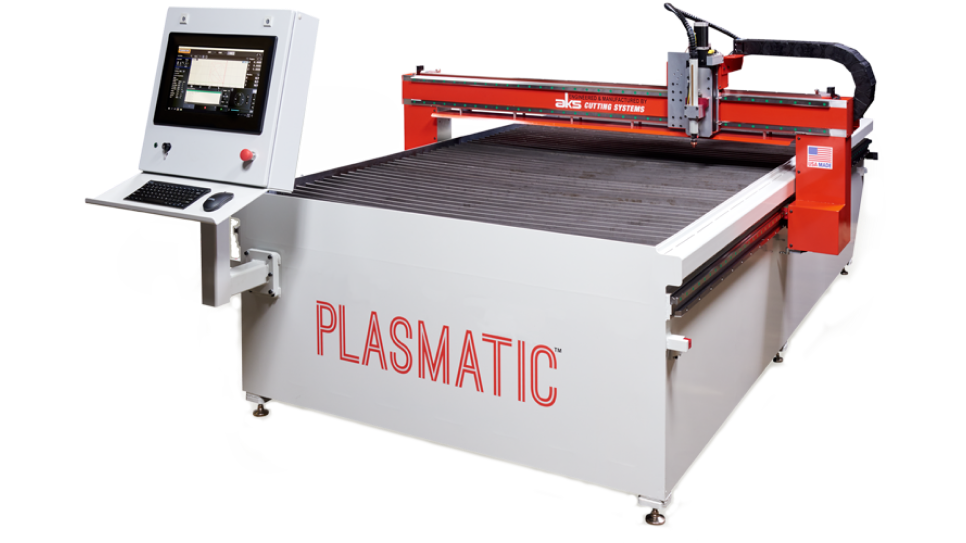

Plasmatic
Motion Accuracy +/- 0.010” per 3 feet of motion
Travel Speed 800 ipm
Screen Size 19-inch touchscreen with keyboard and mouse
Max Cut Depth 1.25 inches
Max Cut Width Up to 6 feet
Max Cut Length Up to 12 * WATER TABLE – 6’X12’ DOWN DRAFT TABLE
5’x10’ layout available upon request.

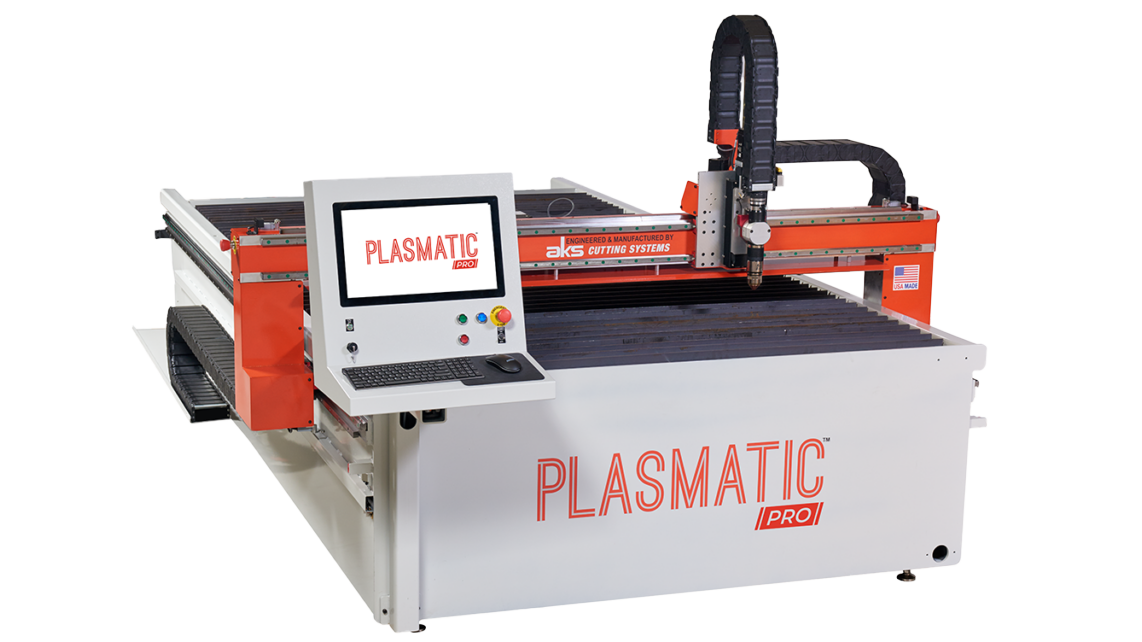

Plasmatic Pro
Motion Accuracy 0.005” per 3 feet of motion
Travel Speed 1200 ipm
Screen Size 19-inches
Max Cut Depth 3 inches
Max Cut Width Up to 6
Max Cut Length Up to 12 * MACHINE TOOL LAYOUT – 6’X12’ DOWN DRAFT TABLE
5’x10’ layout available upon request.

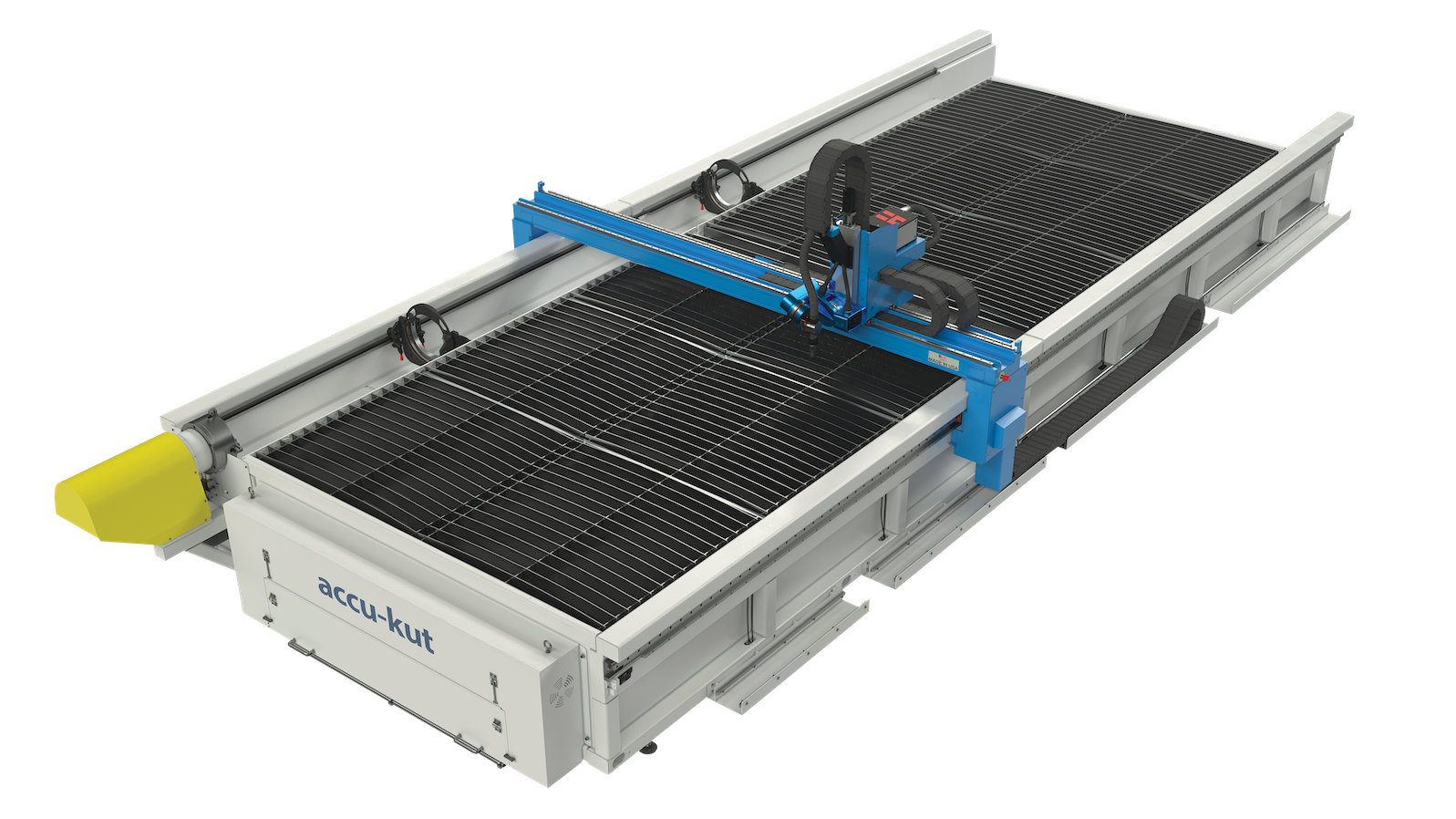

Accu-kut
Motion Accuracy +/- 0.003-inch per 3 feet accuracy of motion
Travel Speed 1200ipm travel speed
Screen Size 19-inch color touch screen console
Software Local license of ProNest 2025
Max Cut Depth Cuts material up to 8 inches thick
Max Cut Width Up to 10 feet depending on machine size
Max Cut Length Up to 60 feet depending on machine size
Dura-kut
Motion Accuracy +/- 0.006-inch per 3-feet accuracy of motion
Travel Speed 1200 ipm travel speed
Screen Size 19” color touch screen console
Max Cut Depth Up to 16 inches
Max Cut Width Up to 30 feet
Max Cut Length Up to 200 feet in 10-foot increments
